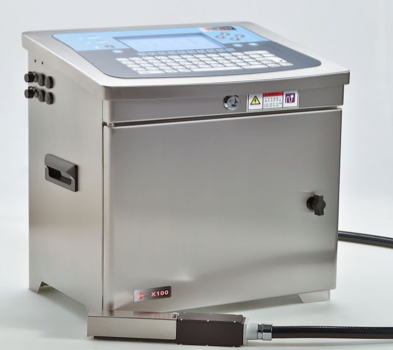

PX100-32 Technical Specifications
| Specification | Value |
| Print Direction | 360 degree rotating |
| Line of Print | 1-5 lines 32 dotmatrix
|
| Character Height | 0.8-15MM (No limit to the character length) |
|
Print Speed |
5*5 dot Single line —-345 Meters/Minute |
| 5*7 dot Single line —-247 Meters/ Minute | |
| 5*7 dot Double lines —-123 Meters/Minute. | |
| 5*7 dot Three lines —-82 Meters/Minute | |
| Display | 240*128 Bright blue backlit 6″ LED display |
| Font Matrix | 5*5/ 5*7/ 7*9/ 8*12/ 10*14/ 14*16/ 16*24 |
| Electrical Requirements | 220V 50HZ 200VA |
| Temperature Range | 0℃ to 50℃ (32℉ to 122℉) |
| Humidity Range | 10%-90%RH non-condensing |
| Size | L400*W297*H505 |
| Weight | 30 KG |
| Ink color | Black, White, Red, Yellow, Green, Blue, UV (invisible) |
| Data Transmission | • USB interface
• NPN/PNP product sensing interface • Rs485 data transmission |
PX100-32 Optional Features
- Can be upgraded to 48 dots matrix printing
- Up to 20 messages for Printing selection can be added
Standard function
- Automatic nozzle cleaning
- User friendly operation interface
- Edit point by point, the editing position can be selected arbitrarily within the editing range
- Logo and graphic printing function
- Serial number, shift, clock setting, printing function
- USB interface, you can use U disk to download information and update software
- Printing quantity monitoring function
- Automatic prompt for specific faults
- IP54 industrial protection grade, stainless steel outer box, adapt to harsh production environmentThe PX series inkjet printer is stable and reliable operating performance, equipped with advanced and complete functions, and optimized cost performance. PX100 can be widely used in food, beverage, medicine, tobacco, building materials, pipes, cables, automobiles, chemicals, electronics and other industries.
