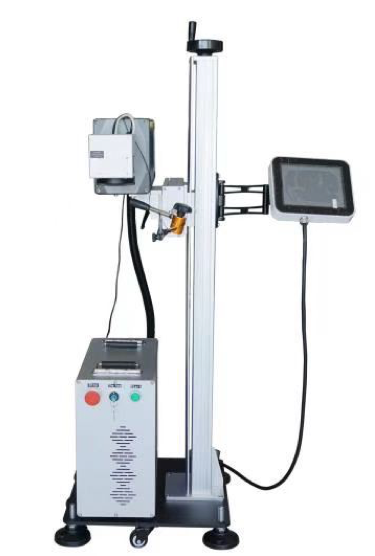

PL-30W Technical Parameters
| Laser parameters | 30W |
| Laser wavelength | 1064nm |
| Beam quality | <2 |
| Laser repetition rate | 20KHz —100KHz |
| Standard engraving range | 110mm*110mm |
| Optional engraving
|
50mm*50mm/110mm*110mm/200mm*200mm |
| Engraving depth | 0.01～0.4 mm |
| Engraving speed | 800 standard characters per second (character height = 1mm) |
| Minimum line width | 0.001mm |
| Minimum character | 0.15mm |
| Repeatability | 0.0025mm |
| Rated power consumption | 160w |
| electricity demand | 220V / 单相 / 50Hz / 4A |
| System size (length*width*height) | |
| Light path system | 410mm*130mm*320mm (smaller than ordinary computer case) |
| Control System | Computer configuration: 2.8G/1G/120G/LCD display |
PL-30W Laser equipment system and main technical performance
- Laser system
The laser uses the world’s top fiber laser to form a laser output with a wavelength of 1060nm. Unique sealing design, with functions of safety protection and environmental protection.
- Optical and observation system
(1) Optical system: 1060nm high-precision reflection and condensing system based on galvanometer.
(2) Beam expander: 4 times beam expander combined lens before beam reflection.
(3) The 0.6328μm LD laser collimation system is used to indicate the position of the optical axis, and the indicating light is coaxial with the laser, which can achieve the function of tracking and indicating during processing, and accurate alignment in time.
- High-speed galvanometer scanning and focusing system
Using imported technology, high-speed, high-precision galvanometer scanning motor and scanner, high optical quality focusing lens.
(1) Scanner
Resolution 0.001mm
Repeatability ±0.001mm
Linear scanning speed up to 9000mm/s
(2) F-θ flat field lens
Focal length f=160mm
Working area 110mm×110mm
- Cooling system
The laser is air-cooled
- Computer and control system
PL-30W Main Components and Configurations
Configurations：
| Main configuration | |
| Laser | (MAX Chuangxin, EU CE certification) |
| Galvanometer
|
High-speed galvanometer (OUYA Eurasian high-speed digital galvanometer) |
| Marking control card | Golden Orange (Taiwan) |
| Operating system | Embedded system (Kelingfeng) |
| Field lens Ø110mm | OUYA (focal length F-160MM) |
| Laser power supply | MEAN WELL (Taiwan) |
| Fiber Optic Sensor | Omron |
| Lifting table | self made |
| Frame | self made |
Standards for the implementation of goods manufacturing, inspection and acceptance
The inspection, and acceptance products implement the corporate standard Q/WCT03-2000. The national standards cited by the corporate standard are:
GB10320: Electrical safety of laser equipment and facilities
GB7247: Radiation Safety, Equipment Classification, Requirements and User Guide for Laser Products
GB2421: Basic Environmental Test Regulations for Electronic Products
GB/TB360: Laser power energy test instrument specification
GB/T13740: Laser radiation divergence angle test method
GB/T13741: Laser radiation beam diameter test method
GB/T13842: Neodymium Doped Yttrium Aluminum Garnet Laser Rod
GB/T15490: General Specification for Solid State Lasers
GB/T15175: Solid-state laser main parameter test method
GB/T13862-92: Laser radiation power test method
GB2828-2829-87: batch-by-batch periodic inspection by attributes sampling procedure and sampling table
Quality Assurance Measures
In accordance with the internationally accepted ISO9001 quality system, and implements the GB/T6583-2000 idt ISO8402: 2000 national standard.
